Partition Wall System

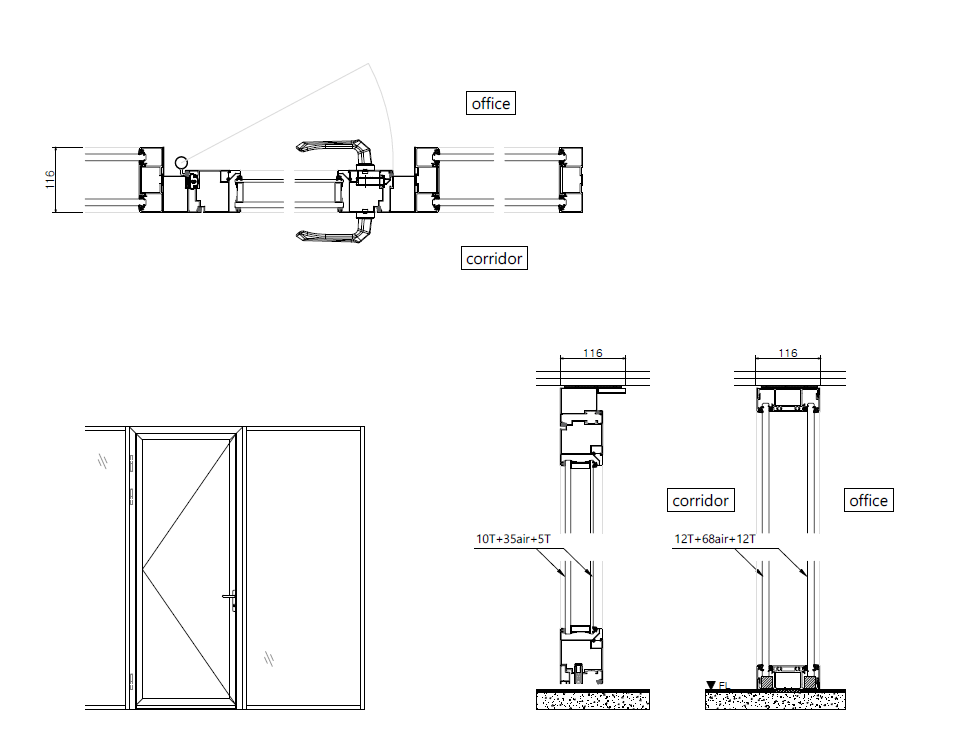

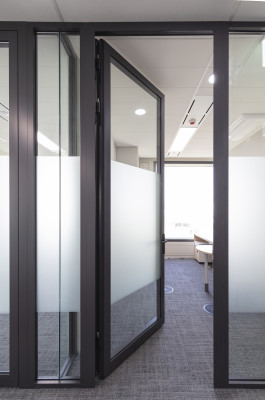

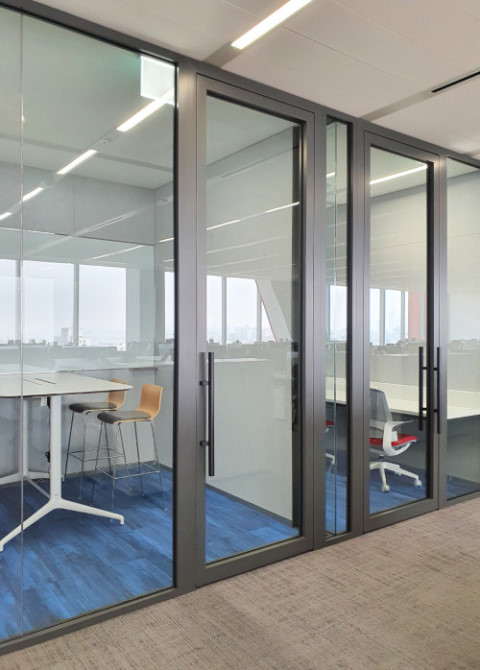

WD65 NI (50) + WT116 NI
Weighted sound reduction index
Door (WD65 NI, 50mm) : Rw = 38 dB
Fixed (WT116) : Rw = 50 dB
Full height
up to 3.0m
Module width
0.9 ~ 1.3m
Hardware

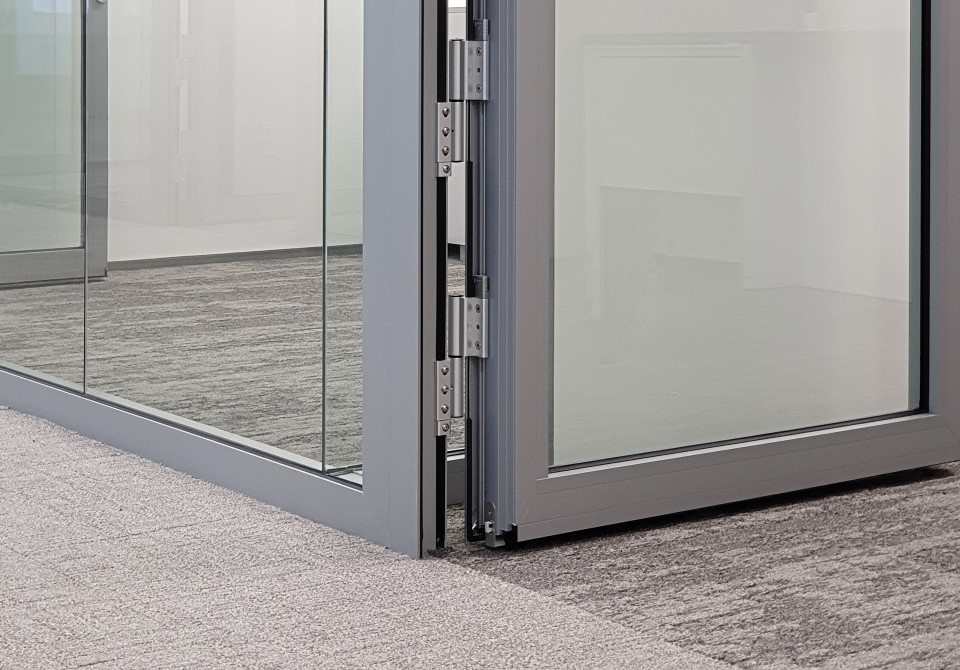

3D adjustable hinge (KR)
auto drop seal (UK)
door closer (DE)
cylinder (DE)
Glass to Glass joint
transparent polycarbonate
ETC
EPDM gasket type
sealant free fabrication

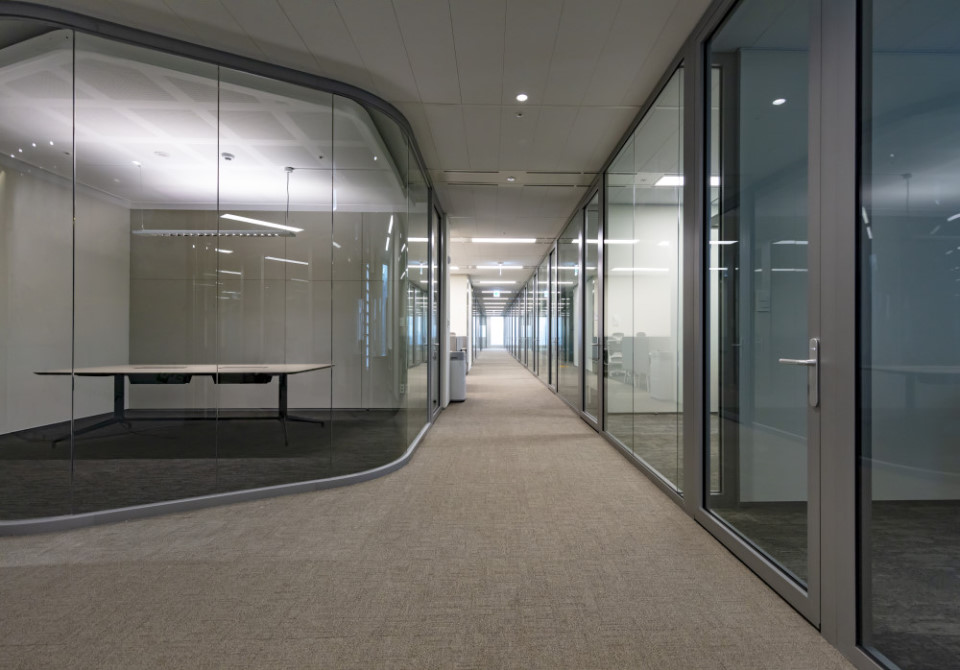

WD65 NI (50) + WT116 NI system has been mostly applied to expert rooms, meeting rooms and law firm offices due to remarkable sound insulation performance, according to applying high quality hardware, and precise frame-design. It provides openness assessment and quiet sound environment. It has been connected glass to glass joint by dry finishing materials without silicon to show simple design.

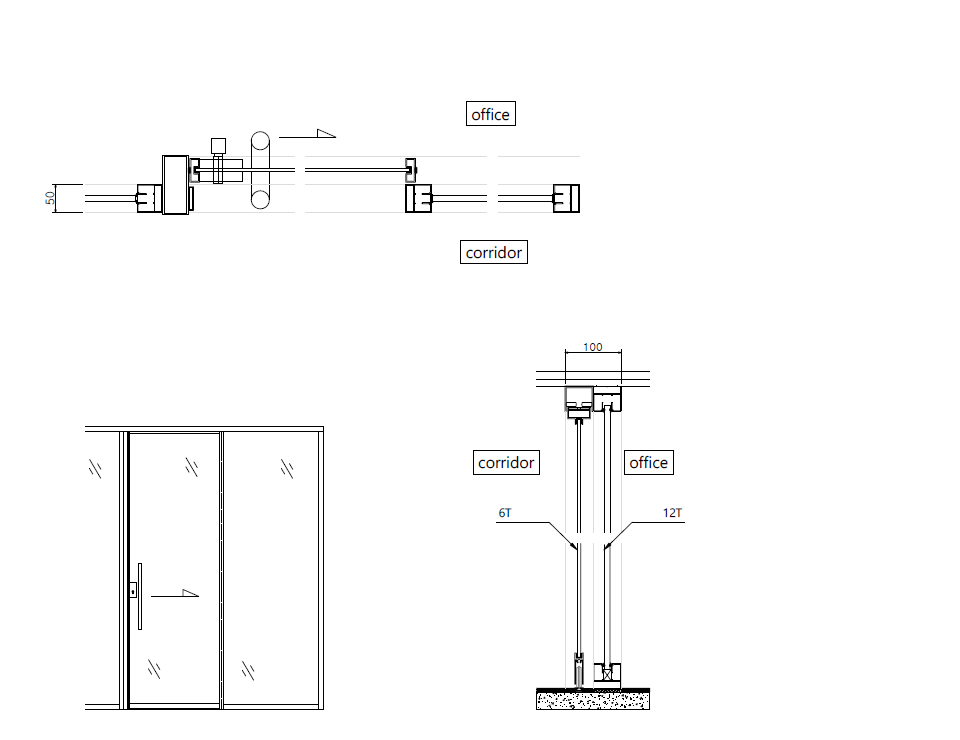

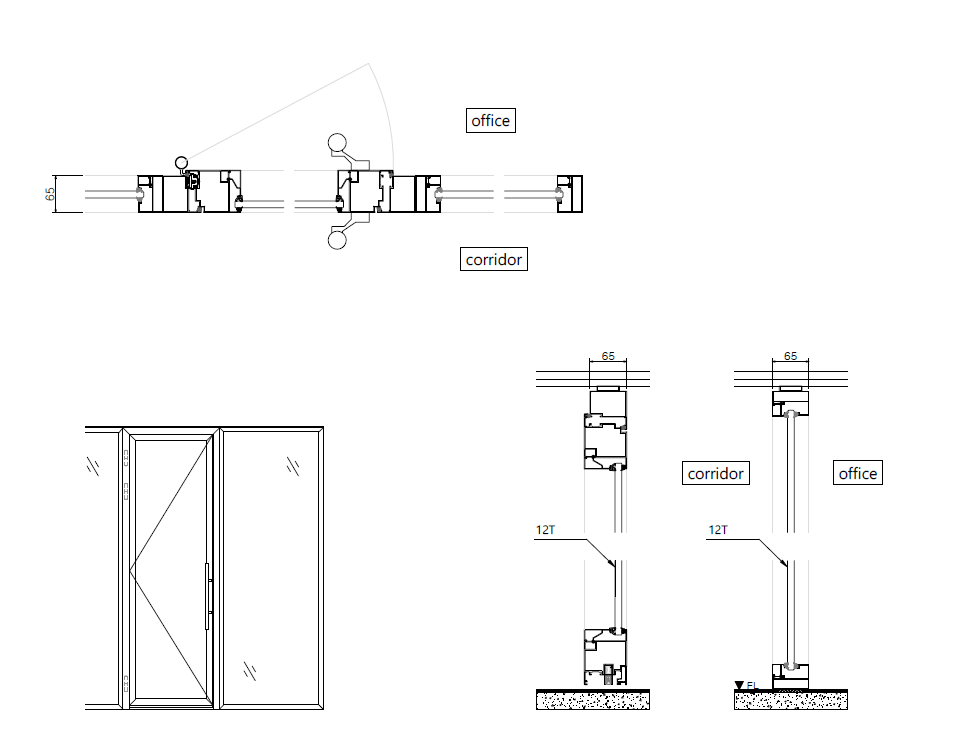

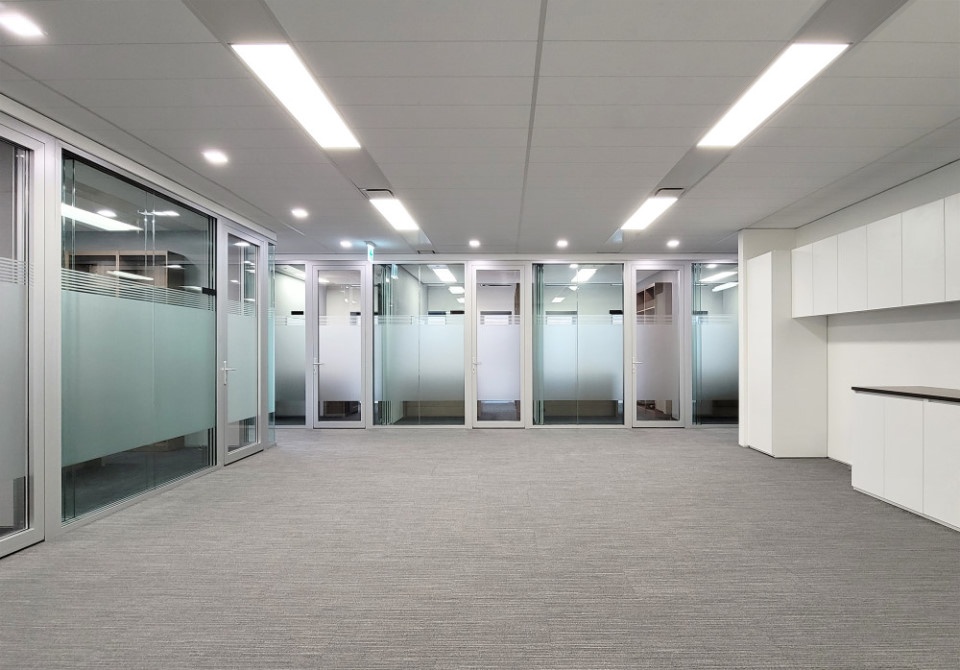

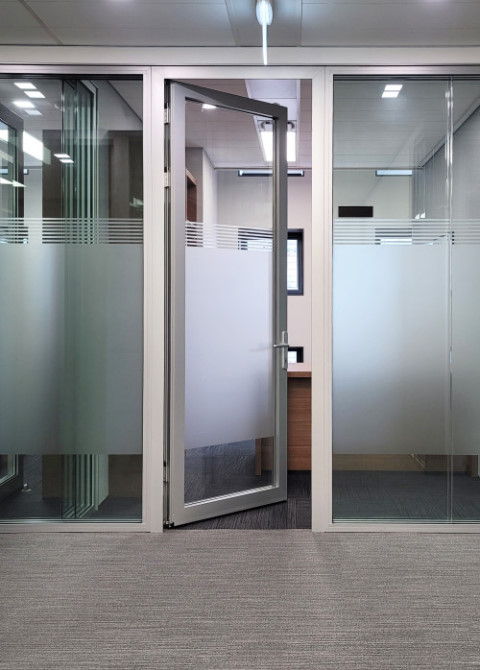

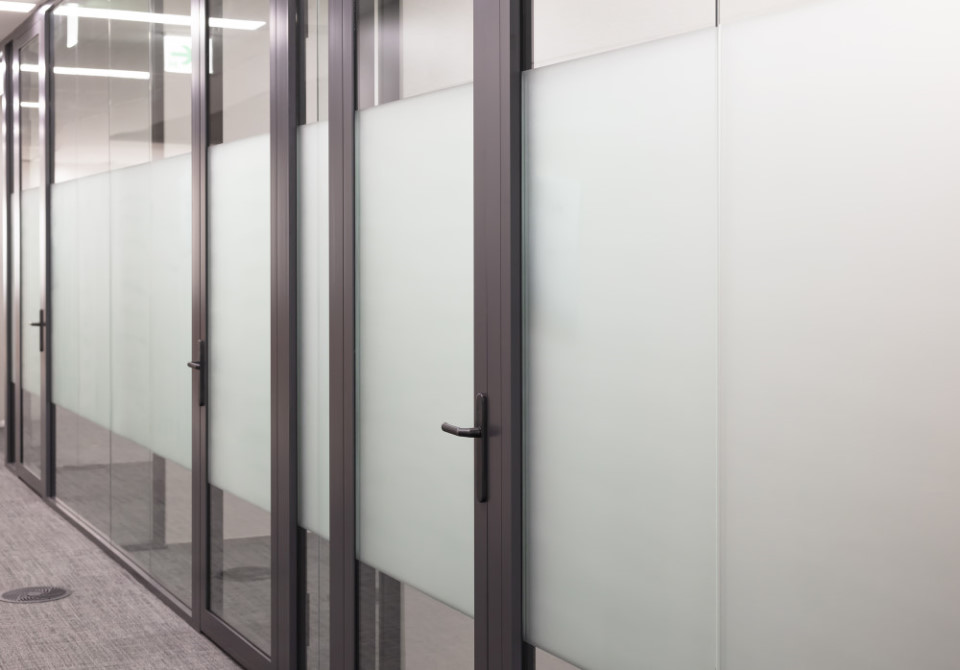

WT65 NI (12) + WT65 (low)
Weighted sound reduction index
-Door (WD65 NI, 12mm) : Rw =33 dB
-Fixed (WT65) : Rw =36 dB
Full height : up to 3.0m
Module width : 0.9 ~ 1.3m
Hardware
-3D adjustable hinge (KR)
-auto drop seal (UK)
-door closer (DE)
-cylinder (DE)
sealant free fabrication, EPDM gasket type
glass to glass joint : transparent polycarbonate
WT65 NI (low) has maximum openness assessment through slim frame (frame depth: 44mm). Made in Germany high-performance hydraulic door closers or electronic door closer can be applied for convenient passing. An auto-drop seal which has been applied at the bottom of the doors makes better performance to be sealed.
ALU-SW + ALU-PT
Y-217
A-Class
E-Class
E-Class
ALU-SD, BTM + FLF50
manual lock
inserted bottom track
outlet
ALU-SD, TOP + FLF28
door mounted digital lock
wall mounted digital lock
without bottom track
